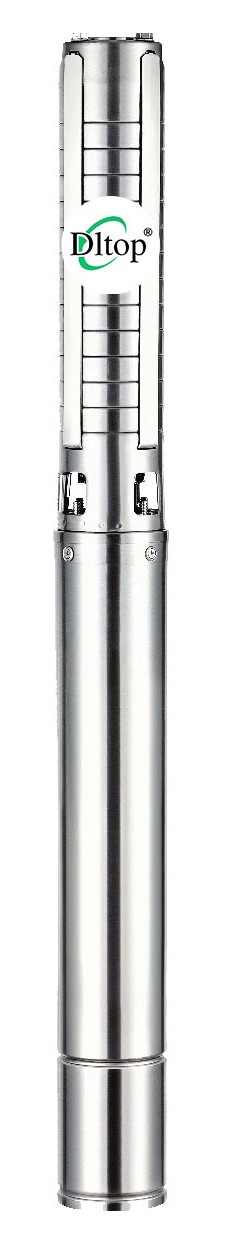

4SP8 Deep Well Submersible Pump

Operating conditions

•Max.flow:340L/Min(20.4m3/h)

•Max.head:379M

•Max. sand content: 0.25%

•Liquid temperature up to 35°c

•Max.immersion:90M

Motor and Pump

•Cast iron/Stainless steel/Brass pump head

•Copper motor

•Stainless steel  diffuser

•Stainless steel  impeller

•Stainless steel shaft

•Stainless steel barrel

Options on request

Voltage range:100-127V,220-230V, 380-415V. 50Hz/60Hz

Enjoy customized services. OEM,ODM
